PIctures of the TMS320C31 DSK

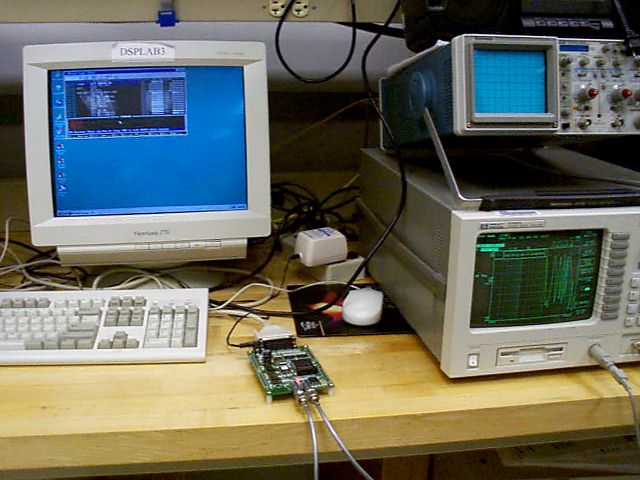

This is the work station in the lab.   On the right hand side is  the dynamic signal analyzer.  On the left side is the computer that basically compiles the program needed to run the TMS320C31 DSP kit.

This is a closer picture of the kit.

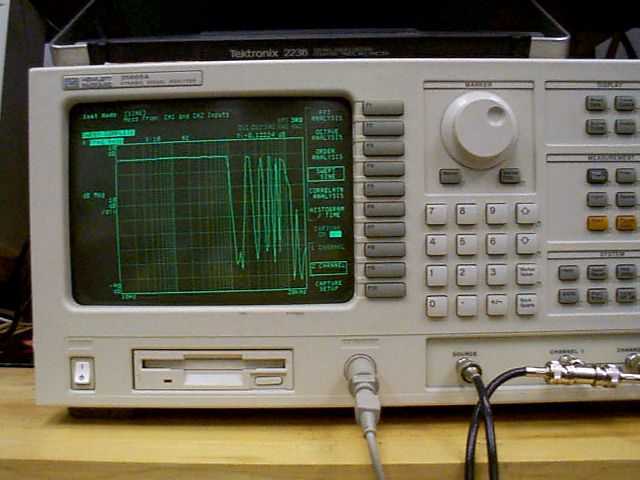

This is the signal analyzer. To the lower right hand side is the input and output channels that connect to the input/output of the DSP kit.

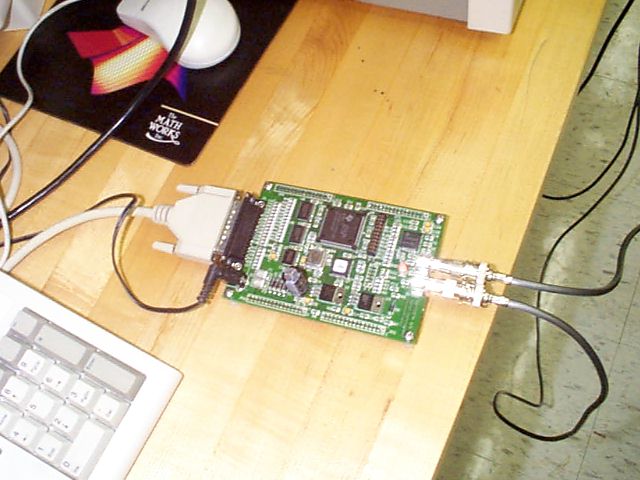

Another picture of the DSP Kit. The Input/Output (right hand side) come from the analyzer and the parallel port (the left side) is connected to the computer.  The other cable is for the DC voltage.
